| Type of Power | Transformer Power Amplifier |
|---|---|
| Mounting | 2U |
| LCD Display | Full Colour LCD Display |
| Protection Function | Short circuit, open circuit, thermal, RF, DC fault, load protection |
| Ground Switch | Yes |
| Switching Mode | Bridge, Parallel & Stereo |
| Input Sensitivity Switch | 0.775V/1.0V/1.4V |
| Ventilation Fan | Yes |
| Low Cut VR at Front Panel | N/A |
| Crossover VR at Front Panel | N/A |
| Phase VR at Front Panel | N/A |
| Output Power | 2x600W 8Ω 2x900W 4Ω 2x1200W 2Ω |
|---|---|
| Bridge Output Power (RMS) | 2x1800W 8Ω 2x2400W 4Ω |
| Frequency Response | 20Hz–20kHz (±0.25dB) |
| Signal to Noise Ratio | >102dB |
| Total Harmonic Distortion | <0.05% |
| Damping Factor | >300 |
| Crosstalk | |
| Slew Rate | 45V/uS |
| Input Sensitivity | 0.775V / 1.0V / 1.4V |
| Input Impedance | 20kΩ Balanced |
| Voltage Gain (8Ω) | |
| Output Circuitry | Class H |
| Air Cooling Direction | High/Low Automatism Control, rear-to-front airflow |
| AC Input | |
| Panel Indicator | |

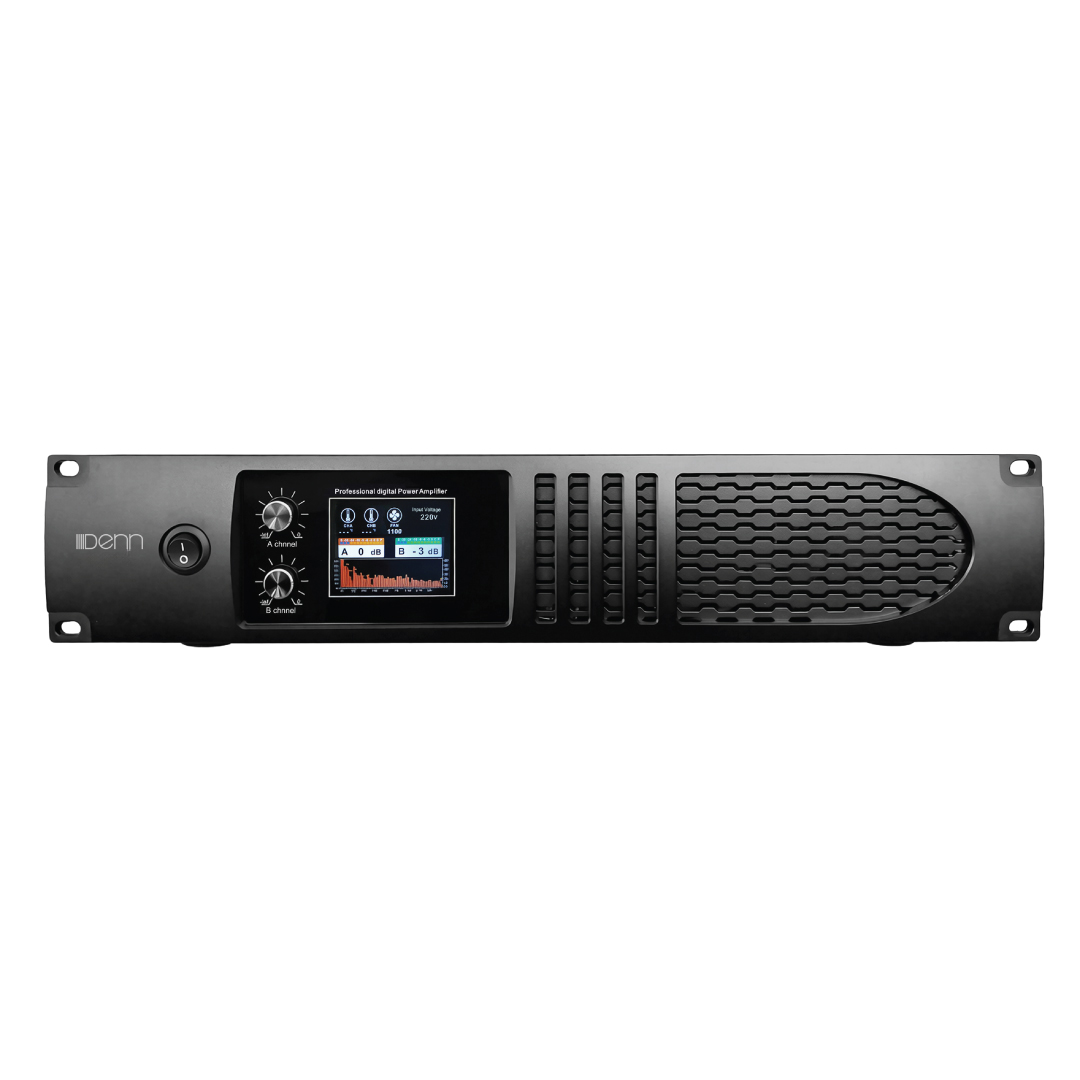

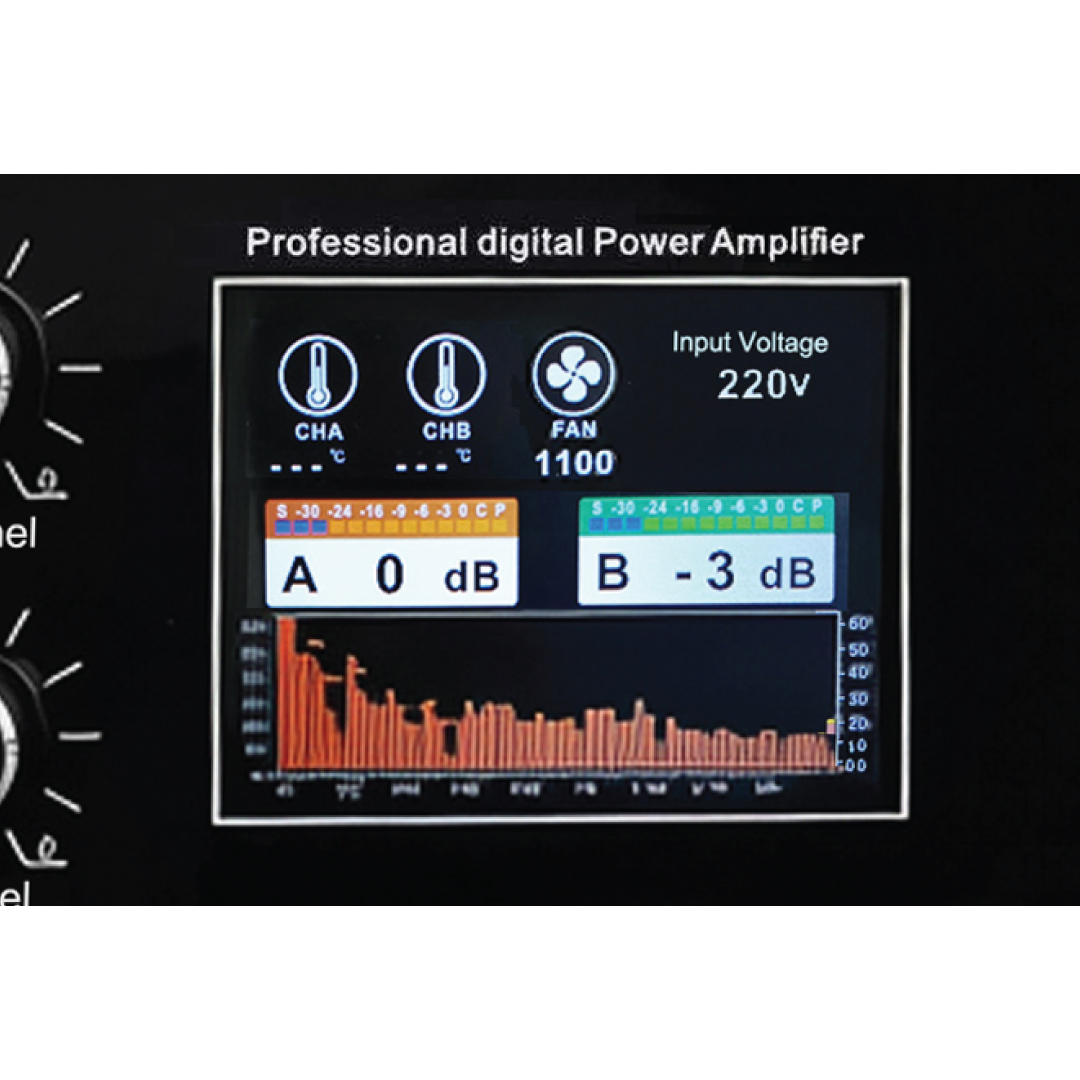

| Front Panel Function | Real-time Channel A and B level meters, input voltage, fan speed status, and full-range audio spectrum analyser for comprehensive system monitoring. |

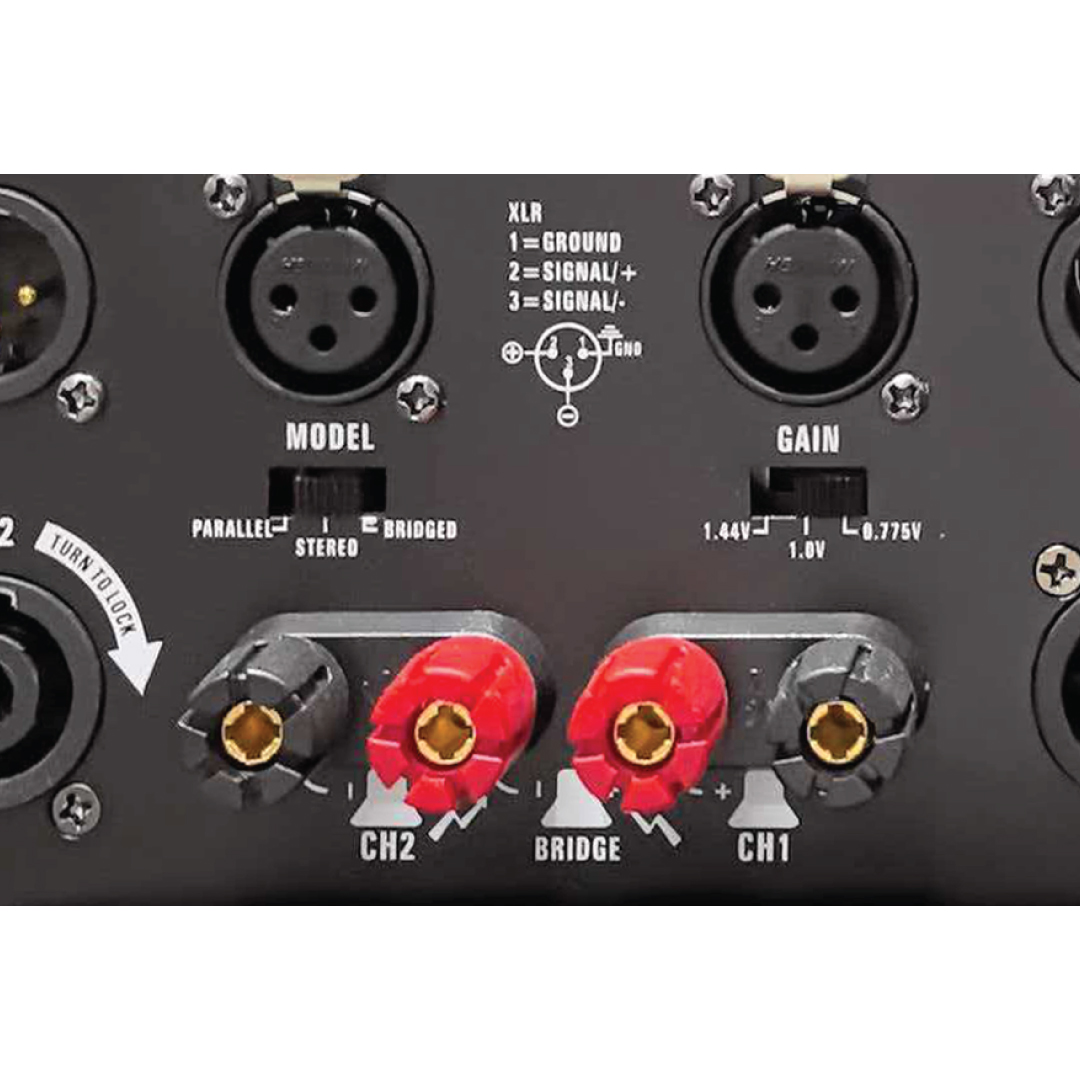

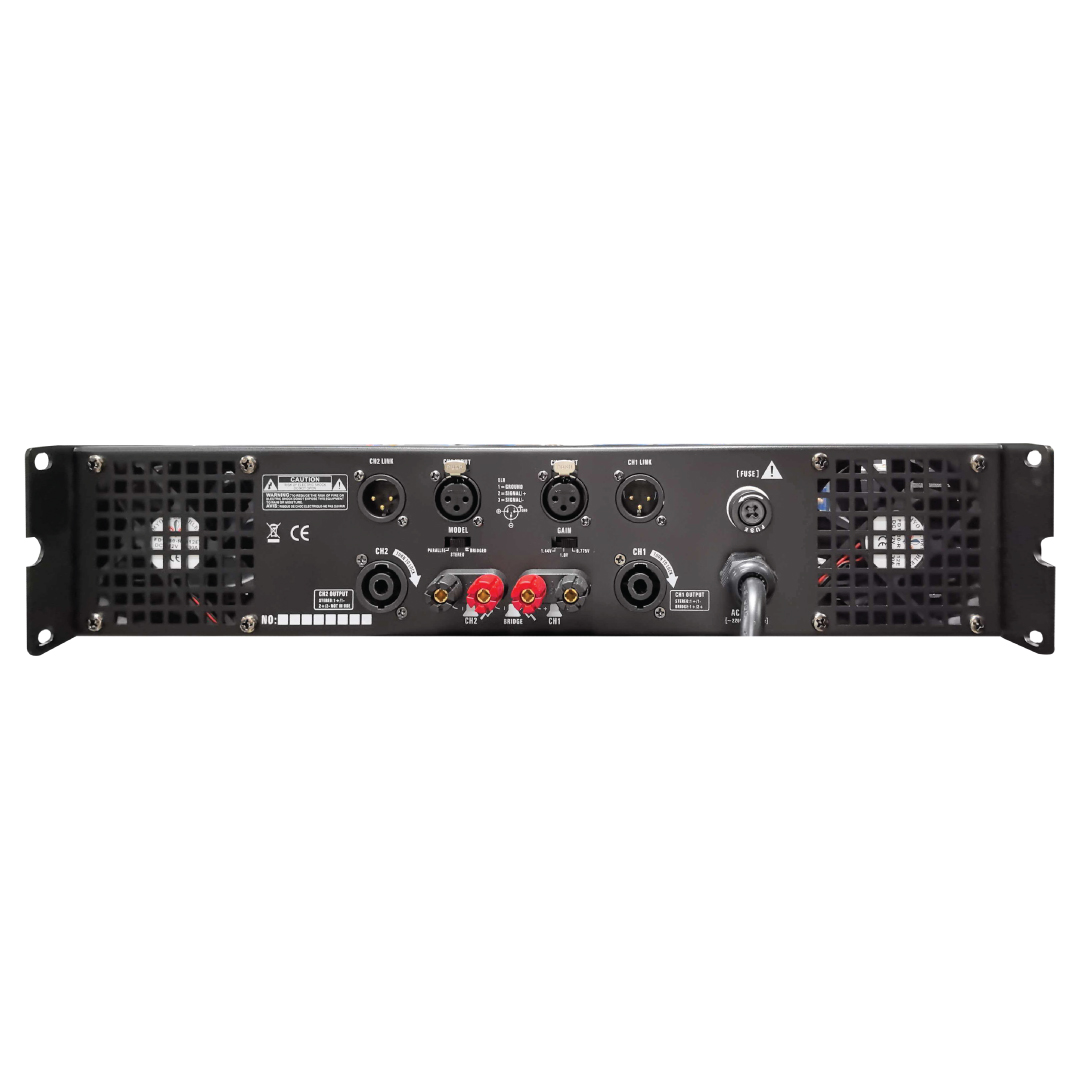

| Back Panel Function | Rear panel MODEL switch for Stereo, Parallel, and Bridge operating modes with dedicated CH1, CH2, and Bridge output connectors. |
| Mode Selection | Stereo / Parallel / Bridge |
| Input Connectors | XLR Plug |
| Output Connectors | Speakon & Banana Plug |
| Product Dimension (W x H x D) | 480mm x 100mm x 465mm |
| Packing Dimension (W x H x D) | 590mm x 160mm x 610mm |
| Net Weight / Gross Weight | 23.0kg/24.1kg |
| Set Per Carton | 1 set per carton |
