| Mechanism | 8 switched AC outputs – Individually controlled power sequencing for rack audio gear, in a 1U chassis. |
|---|---|
| Master key switch | 8 switched AC outputs – Individually controlled power sequencing for rack audio gear, in a 1U chassis. |

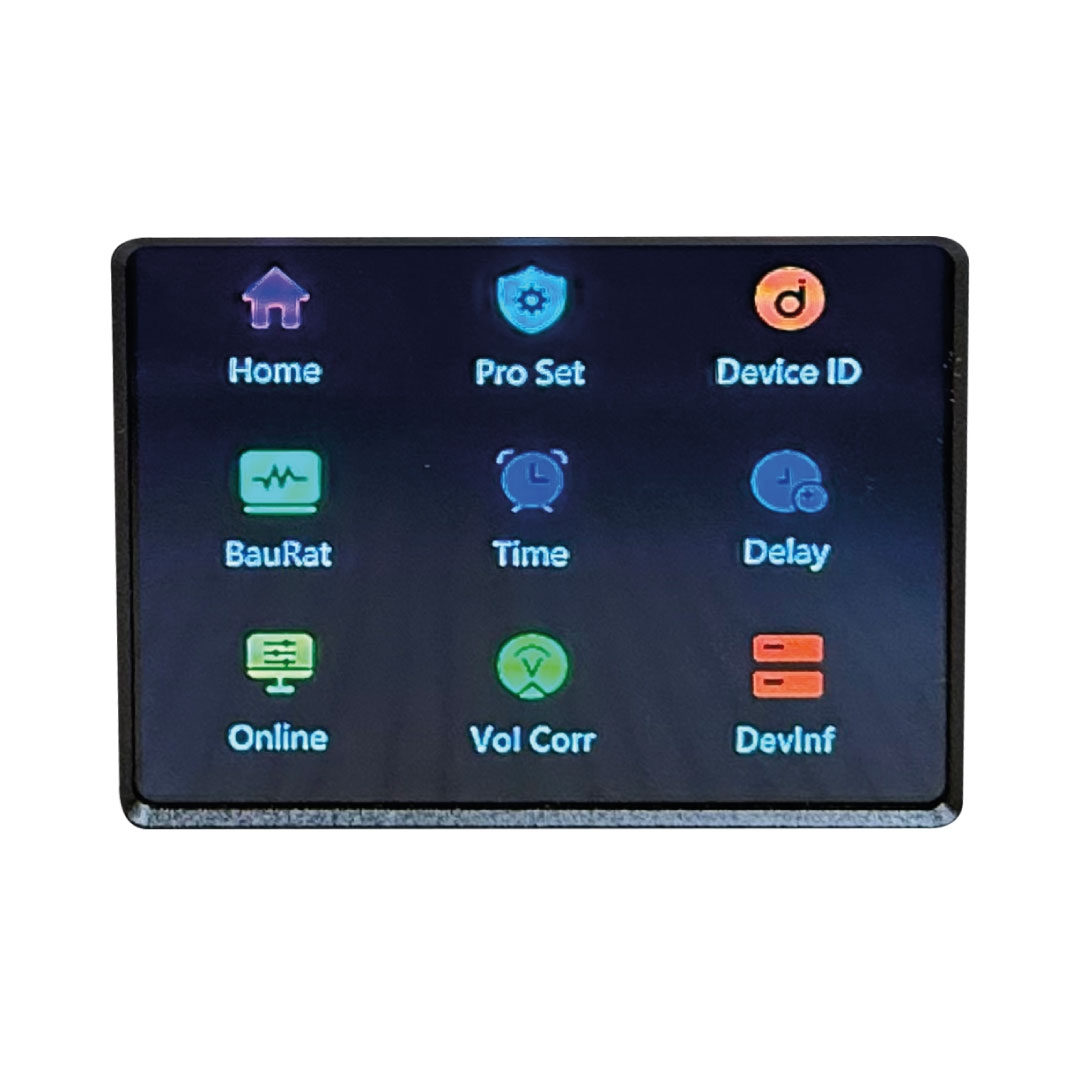

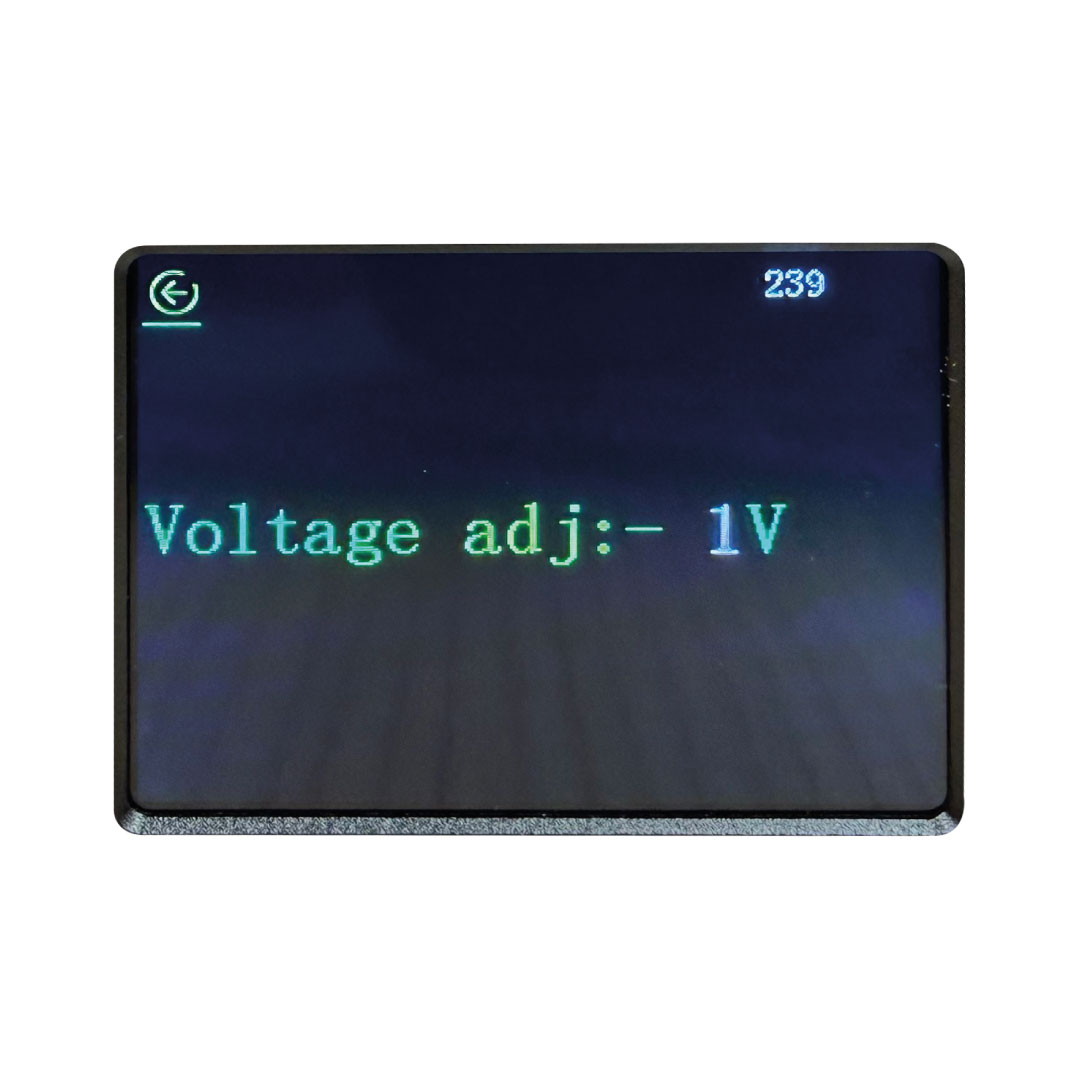

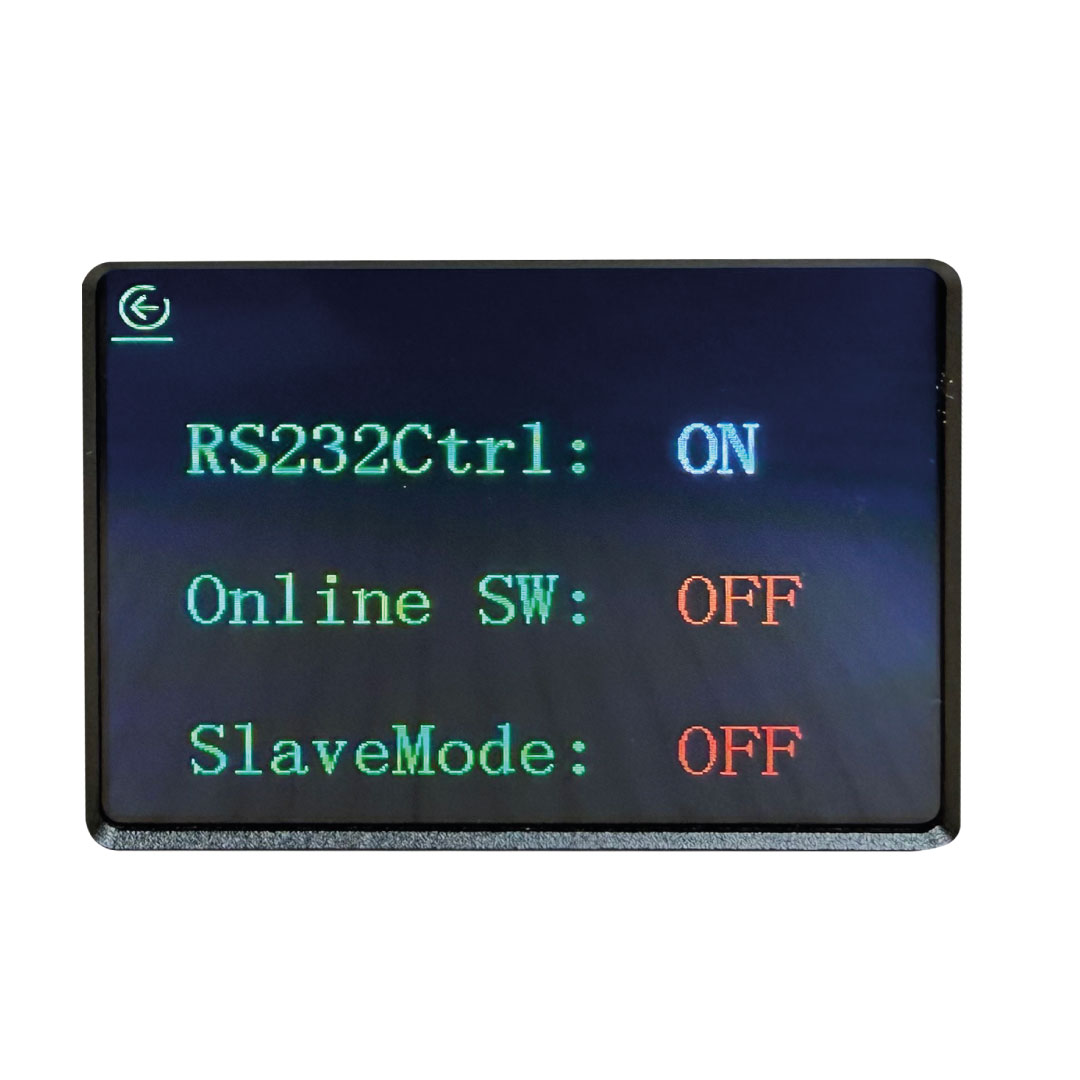

| Application | 9-icon menu system – Quick access to Home, Pro Set, Device ID, Baud Rate, Delay, Online, Vol Corr, and Device Info. |

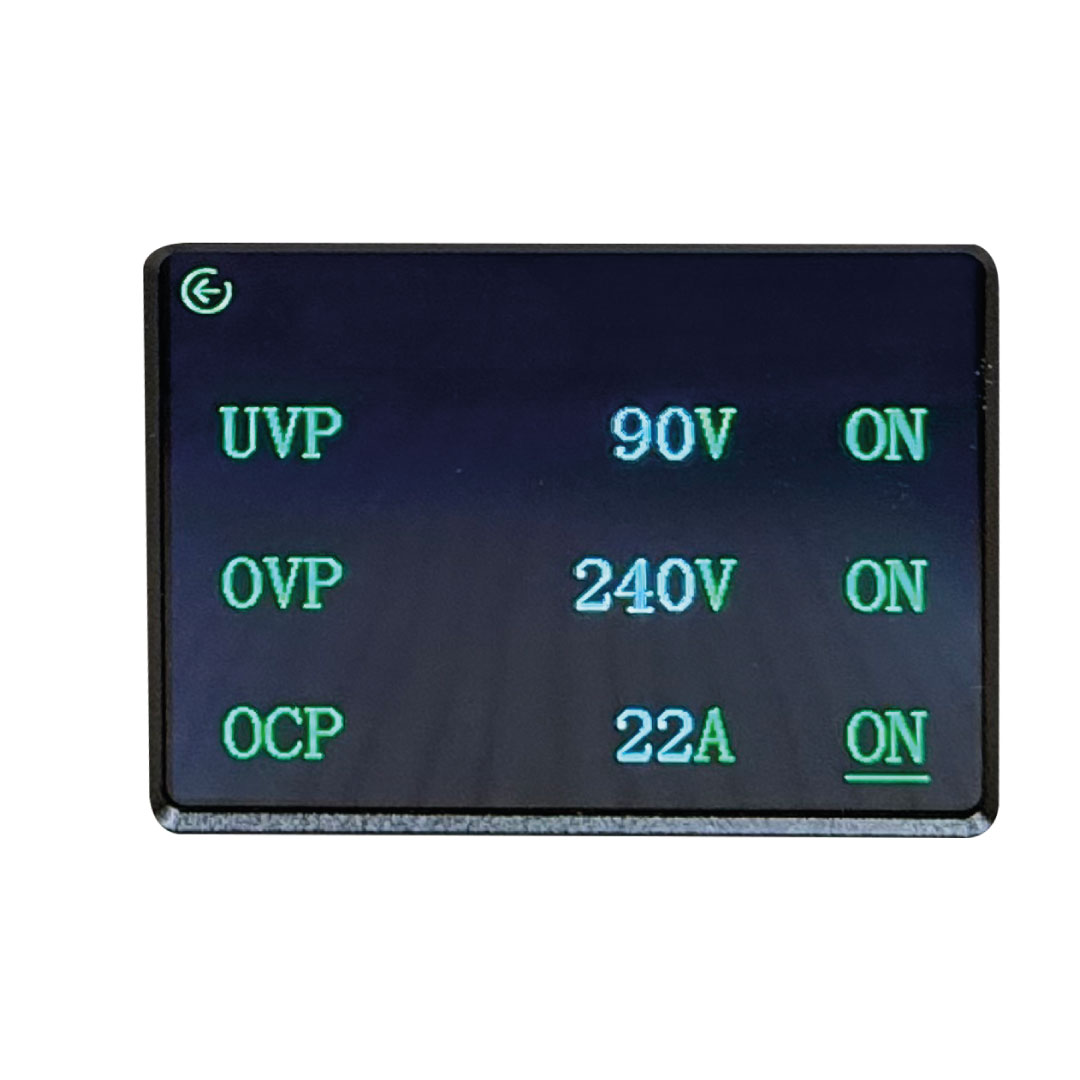

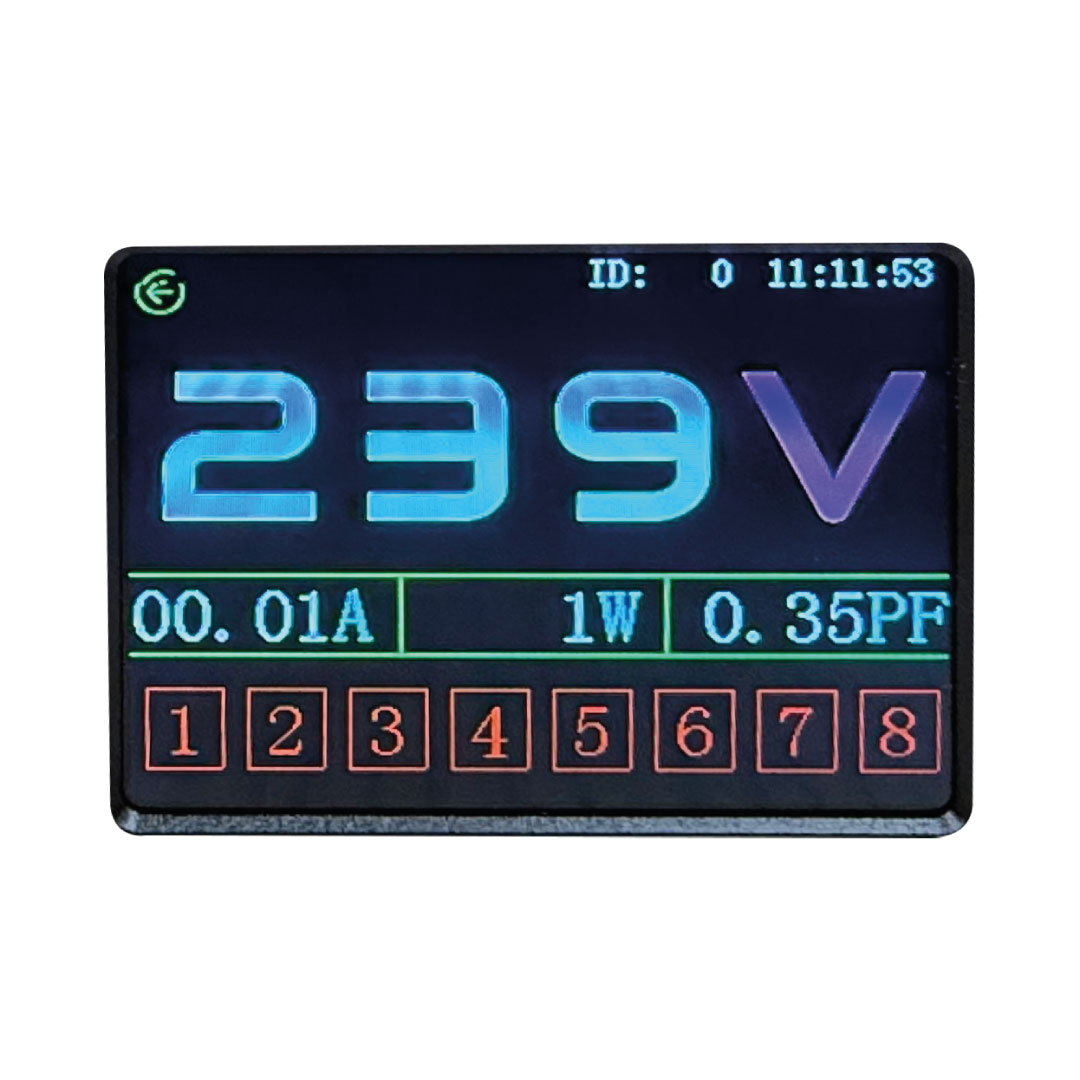

| LED Voltage Display | Live monitoring – Voltage, current, wattage, and power factor shown per channel on the front LCD. |
| USB Power Supply | N/A |
| Power Supply | 220-240V/50Hz |
|---|---|
| Total Power | 2000W / 6000W / 30A |
| Channel Power | 2kVA |

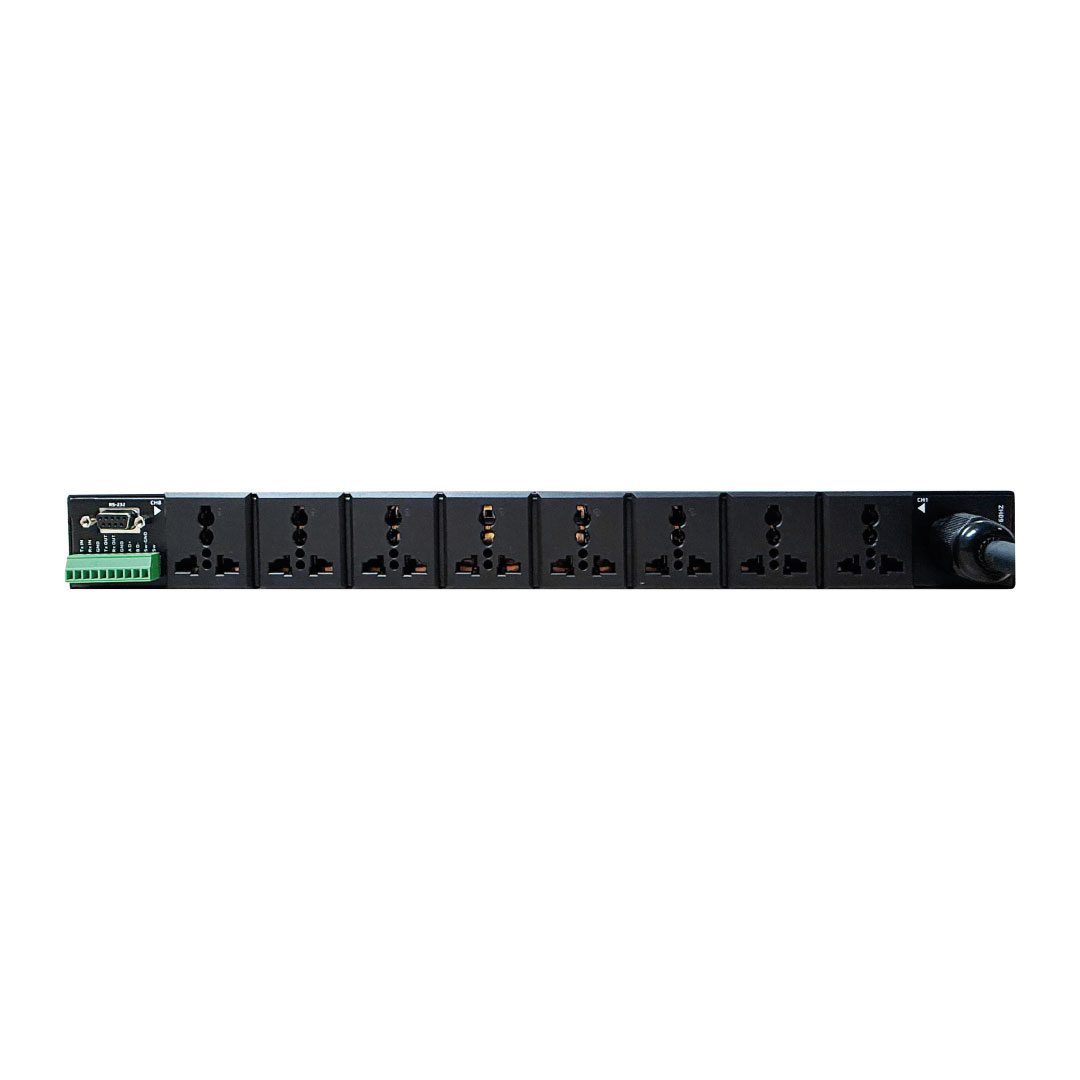

| Output Channel | 8 controlled universal socket relays + 1 direct output universal sockets |
| Input Channel | 8-Way |

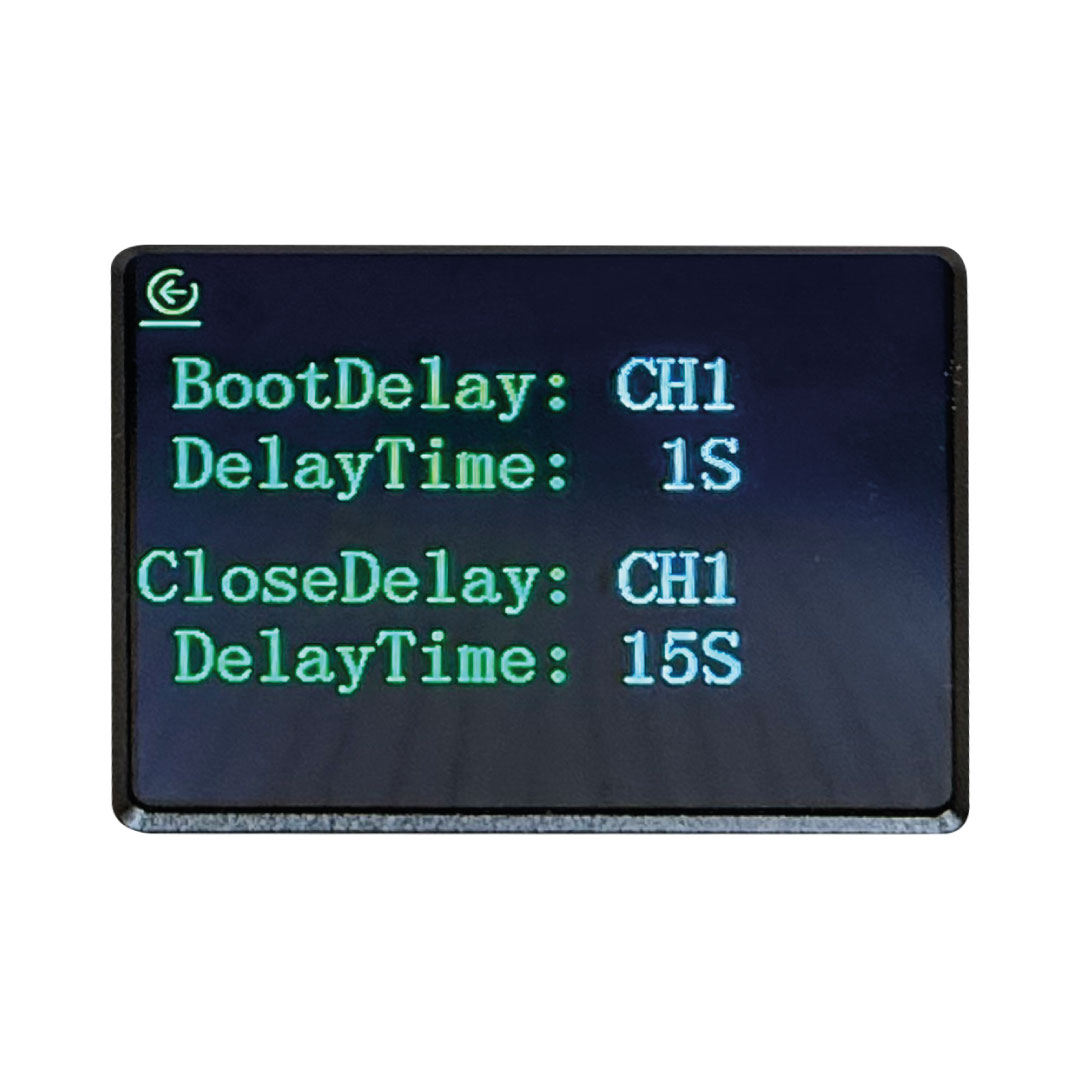

| Sequence Time To Activate/Deactivate Each Output Channel | Adjustable 0–999 seconds |
| Link Cable | VGA link |
| USB LED Light | N/A |
| Product Dimension (W x H x D) | 480x45x225mm |
| Packing Dimension (W x H x D) | 550x75x380mm |
| Weight | 3.85kg |
| Set per Carton | 5 sets per carton |
