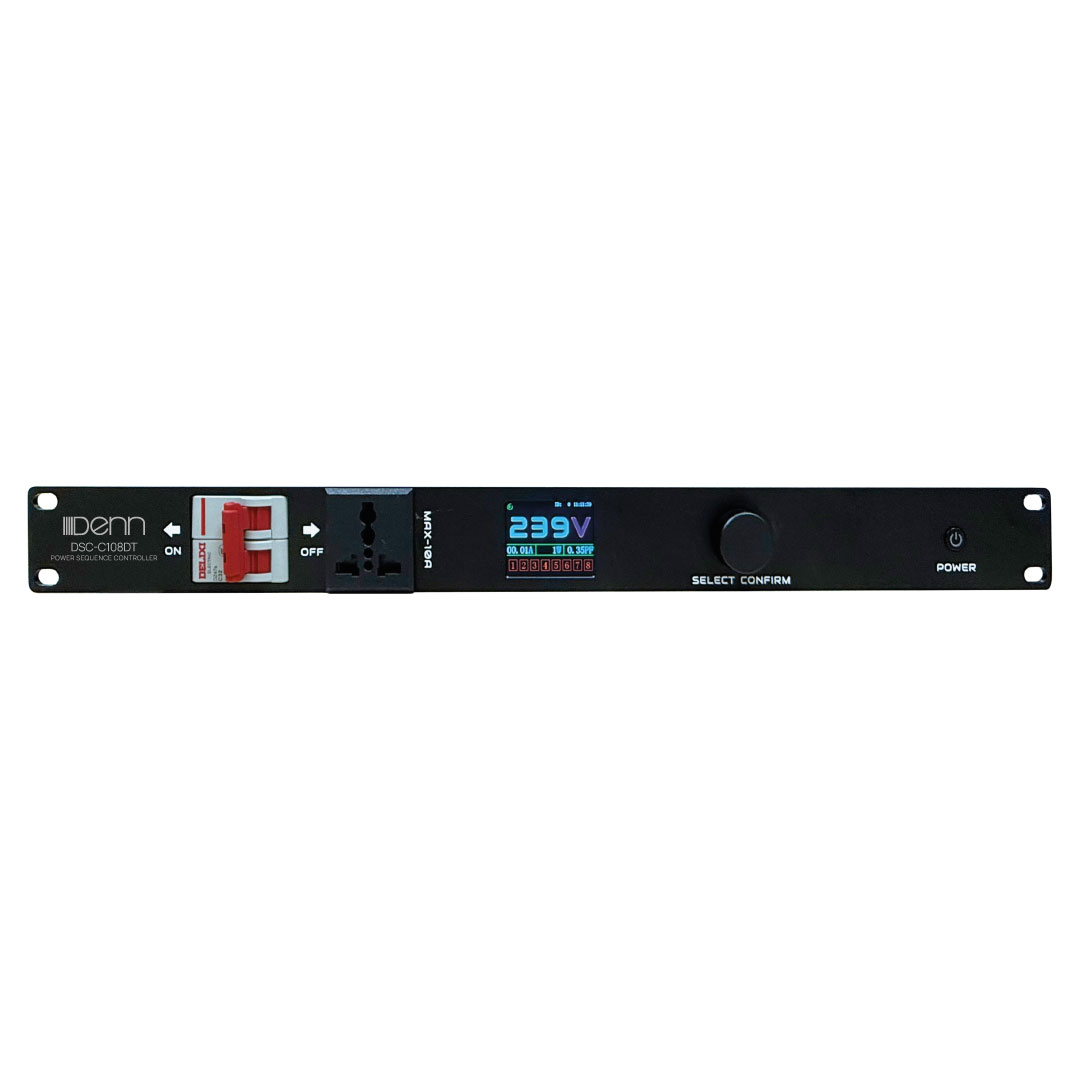

DSC-C108DT8-Way Power Supply Sequence Controller |
||
Features |
||
|---|---|---|
| Mechanism | 8 switched AC outputs – Individually controlled power sequencing for rack audio gear, in a 1U chassis. | |
| Master key switch | 8 switched AC outputs – Individually controlled power sequencing for rack audio gear, in a 1U chassis. | |
| Application | 9-icon menu system – Quick access to Home, Pro Set, Device ID, Baud Rate, Delay, Online, Vol Corr, and Device Info. | |
| LED Voltage Display | Live monitoring – Voltage, current, wattage, and power factor shown per channel on the front LCD. | |
| USB Power Supply | N/A | |
Specifications |
||
| Power Supply | 220-240V/50Hz | |
| Total Power | 2000W / 6000W / 30A | |
| Channel Power | 2kVA | |
| Output Channel | 8 controlled universal socket relays + 1 direct output universal sockets | |
| Input Channel | 8-Way | |
| Sequence Time To Activate/Deactivate Each Output Channel | Adjustable 0–999 seconds | |
| Link Cable | VGA link | |
| USB LED Light | N/A | |
| Product Dimension (W x H x D) | 480x45x225mm | |
| Packing Dimension (W x H x D) | 550x75x380mm | |
| Weight | 3.85kg | |
| Set per Carton | 5 sets per carton | |
|
