| Mixer Type | 16-channel |
|---|---|
| Digital Signal Processor (DSP) | N/A |
| Bluetooth Function | Yes |
| USB Input with MP3 Playback | Yes |
| USB Recording Function | Yes |
| Aluminium Side Panel | Yes |
| Built-in Flight Case | N/A |
| Built-in Layer Servo Fan | N/A |
| Rack Mounted | Rack Mount Ready, But Bracket Not Included |
| Digital Signal Processor (DSP) | 16 onboard EFX presets, 32-bit SHARC DSP chip, 96kHz sampling rate, 24-bit AD/DA conversion |
|---|---|
| Balanced Mono Mic / Line Channel | 8 x XLR balanced mono mic/line inputs (CH1–8) for highest signal integrity |
| TAPE / AUX Input | 1 TAPE input (L/R) RCA connector |
| Channels Section | Gain, Low Cut, High, Mid, Low EQ, Compressor, Feedback Inhibition, AUX 1–3, FX Send, SUB Group, Main L/R, Pan |
| Inserts | N/A |
| Ultra-Musical Band EQ Channel | Ultra-musical 3-band EQ channel on all mono channel |
| Frequency Control On Mono Channel | Yes, adjust frequency through mid EQ control |
| 80Hz High Pass Filter | Yes, to eliminate stage rumbling |
| Peak LED Indicator | Real-time clip and level metering displayed on 7" colour |
| 48V Phantom Power | Yes, individual +48V phantom power on all XLR mic inputs |
| Segment Bargraph Meters | Real-time input and output level metering displayed on 7" 800x480 HD colour |
| Volume Control | 7 x high-precision 100MM motorised faders with layer switching (IN1–6, IN7–16, OUTPUT) |
| Stereo Graphic Equalizer | 7-band stereo graphic EQ for flexible sound shaping across different venues |
| Monitor Out | N/A |
| Phone Jack | Yes |
| Phone & Monitor Level Control | Single volume control |

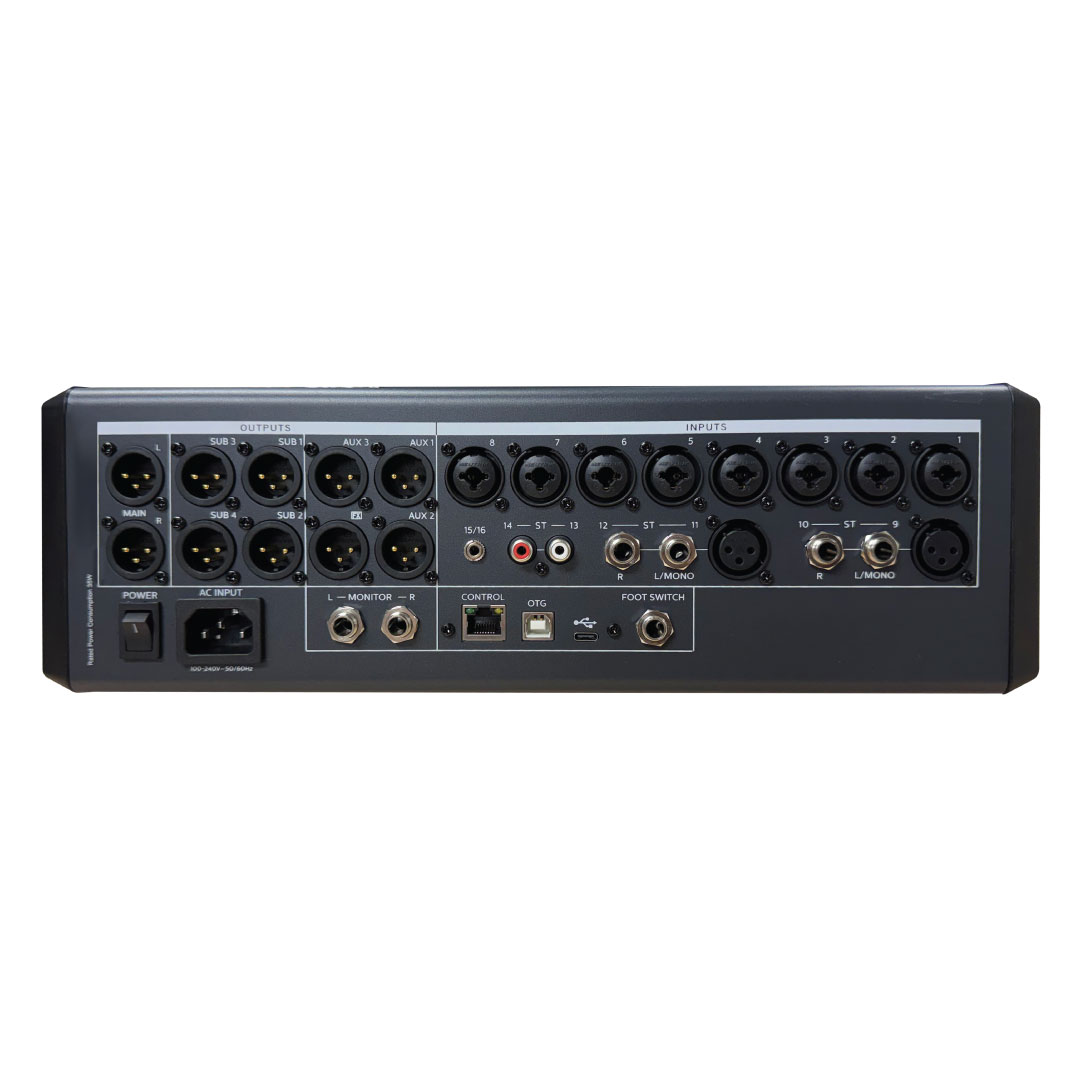

| Master Ouput | 2 channel master output (L/R) with XLR & 1/4” mono jack outputs |
| Group Output | 4 x SUB XLR group outputs (SUB1–4) |
| AUX Send & AUX Return | 3 x AUX XLR outputs (AUX1–3) for monitor mixes and effects routing |
| Record Out | 1-TAPE out (L/R) jack to deliver the main program signal to external recorder |
| Frequency Response | 20Hz - 20kHz |
| Product Dimension (W x H x D) | 380x120x430mm |
| Packing Dimension (W x H x D) | 550x200 x480mm |
| Weight | 7.4kg |
| Set per Carton | 1 set |
