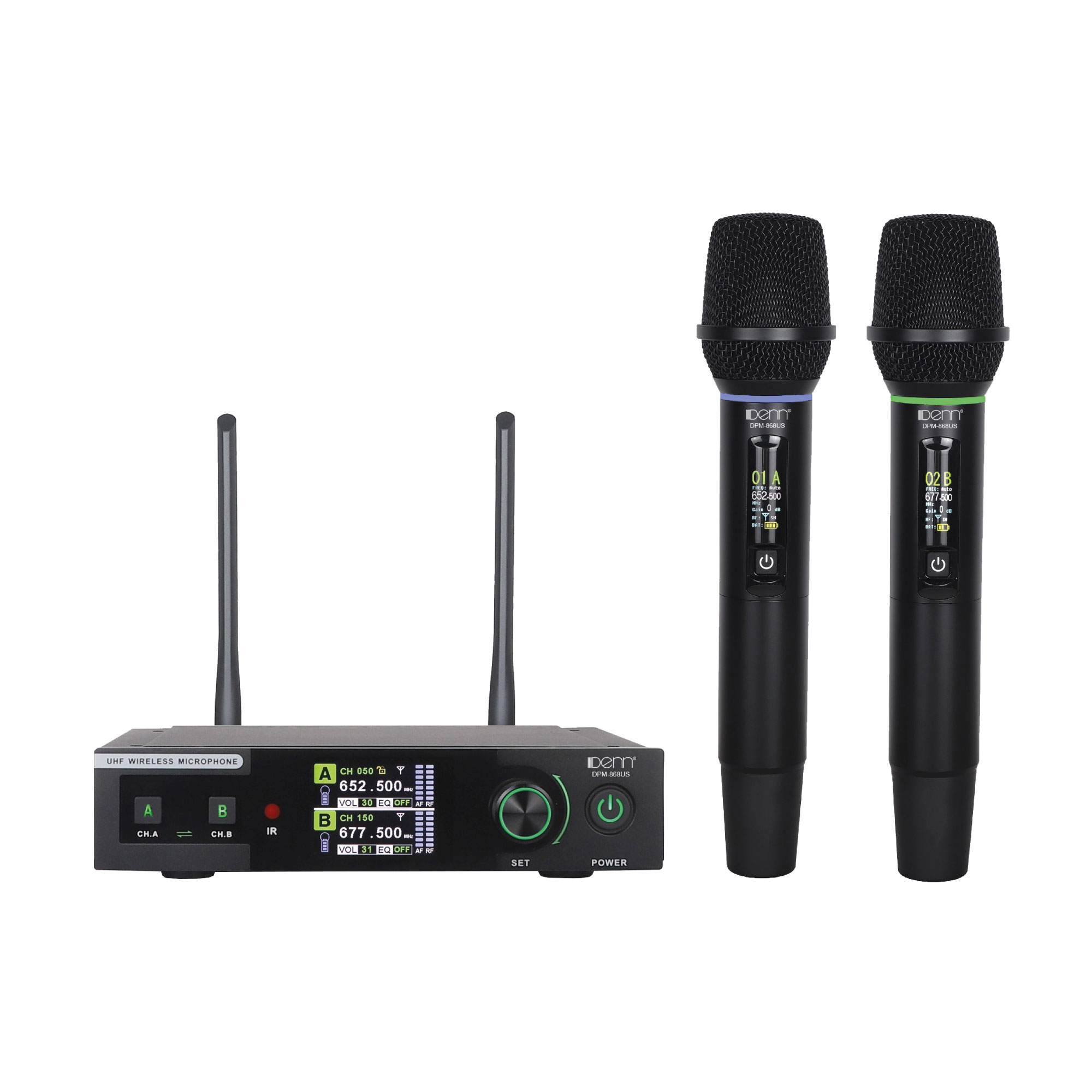

DPM-868US(HH)Ultra High Frequency (UHF) Spectrum Wireless Microphone |
||
Features |
||
|---|---|---|
| Country of Origin | Made in China | |
| Applications | Karaoke | |
| Battery Life* (Subject To Battery Quality) | Appx 8 hours* | |
| Handheld / Transmitter Microphone | 2 handheld microphones | |
| Balance and Unbalanced Audio Output | Yes | |
| Alternative Mic Frequency Channel | Yes, Spectrum Frequency Scanning, automatically detects and selects the cleanest frequencies, minimizing RF congestion and interference | |
| Handheld / Transmitter Pre-set Frequency | No | |
| LED Display On Receiver Panel | Yes, Fully Customizable Effect Control – Fine tune Equalizer, Echo and FBX noise cut control via reciever effect interface for each individual microphone channel. | |
| Receiver with USB / SD Charging Mode | No | |
| Squelch Control | N/A | |
| Handheld Mic LED Display on Battery Signal Indicator | Yes | |
| Handheld Auto Mute Function (Power Savings) | No | |
| Rechargeable Battery | No | |
| Microphone Battery Level Indicator | Yes | |
| Microphone Channels | 100 Mono Channels x 2 | |
| Rack Mount | Yes | |
Specifications |
||
| Carrier Frequency Range | 640 - 690MHz | |
| Frequency Response | 50Hz - 18kHz (±3dB) | |
| Frequency Stability | < ± 0.005% | |
| RF Sensitivity | N/A | |
| Deviation Range | N/A | |
| Receiver Power Supply | AC 100 - 240Hz / 45 - 60Hz | |
| Audio Output | Max 1.4V RMS | |
| Signal to Noise Ratio | >103dB | |
| System Distortion | < 0.5% | |
| Microphone Battery | AA1.5V x 2 per handheld | |
| Operating Range | Approximately 100M | |
| Operating Temperature | -10°C- 50°C | |
| Receiver Dimension (W x H x D) | 210mm x 65mm x 165mm | |
| Packing Dimension (W x H x D) | 420mm x 65mm x 296mm | |
| Weight | 0.68kg | |
| Set per Carton | 10 sets per carton | |
|
